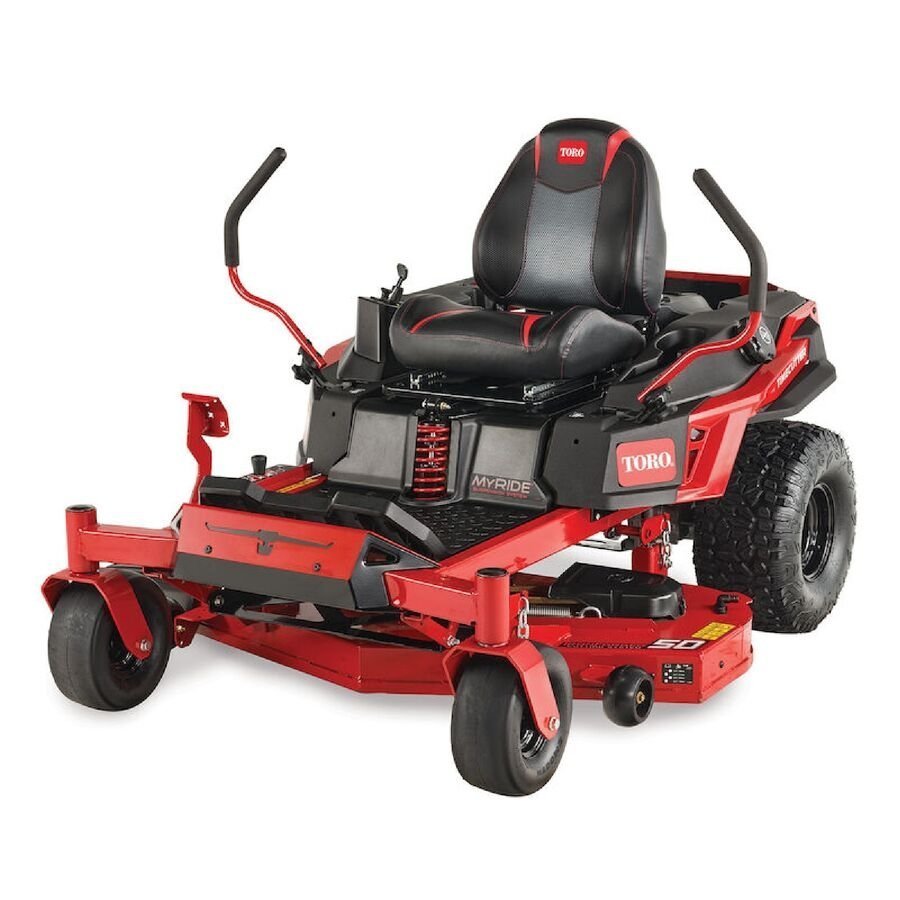

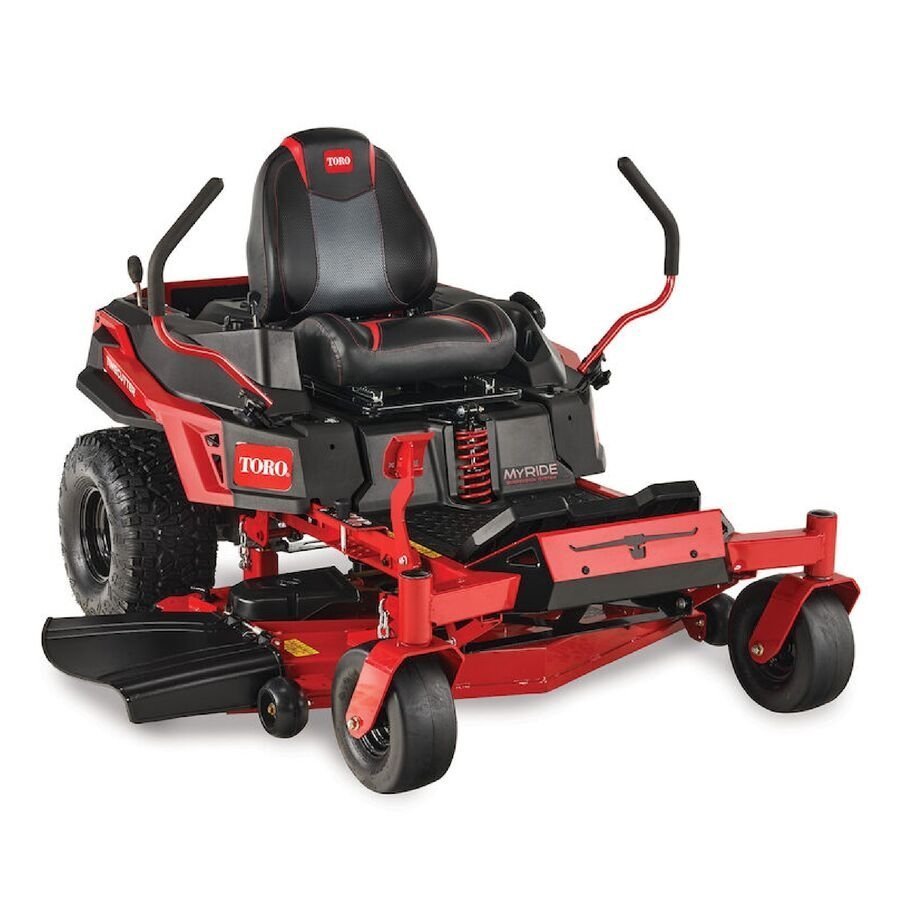

50 in. (127 cm) TimeCutter Max MyRide Zero Turn Mower

When it comes to your yard, second best just won’t cut it. That’s why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you’re done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.
Specifications
Air Filter

Standard Kawasaki Air Cleaner
Anti Scalp Wheels

3 Standard
Armrests

Optional
Bagger Capacity

4.9 bushels
Blade Tip Speed

17,600 ft/min / 5,364 m/min
Box Dimensions

82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
CARB Compliant

Not CARB Compliant
Carrier Frame

3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires

12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic
Clutch

Electromagnetic
Comfort Platform

MyRIDE® Suspension System
Cooling System

Air Cooled
Crankshaft

1″ (25 mm) w/Steel Protector
Cup Holder

Standard
Cutter System

Steel Cutting Blade
Deck Design

10-Gauge steel IrongForged®
Deck Material

10 Gauge Steel
Deck Size

50 in / 127 cm
Discharge Chute

Side
Drive System

HYDRO

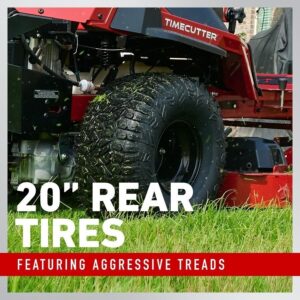

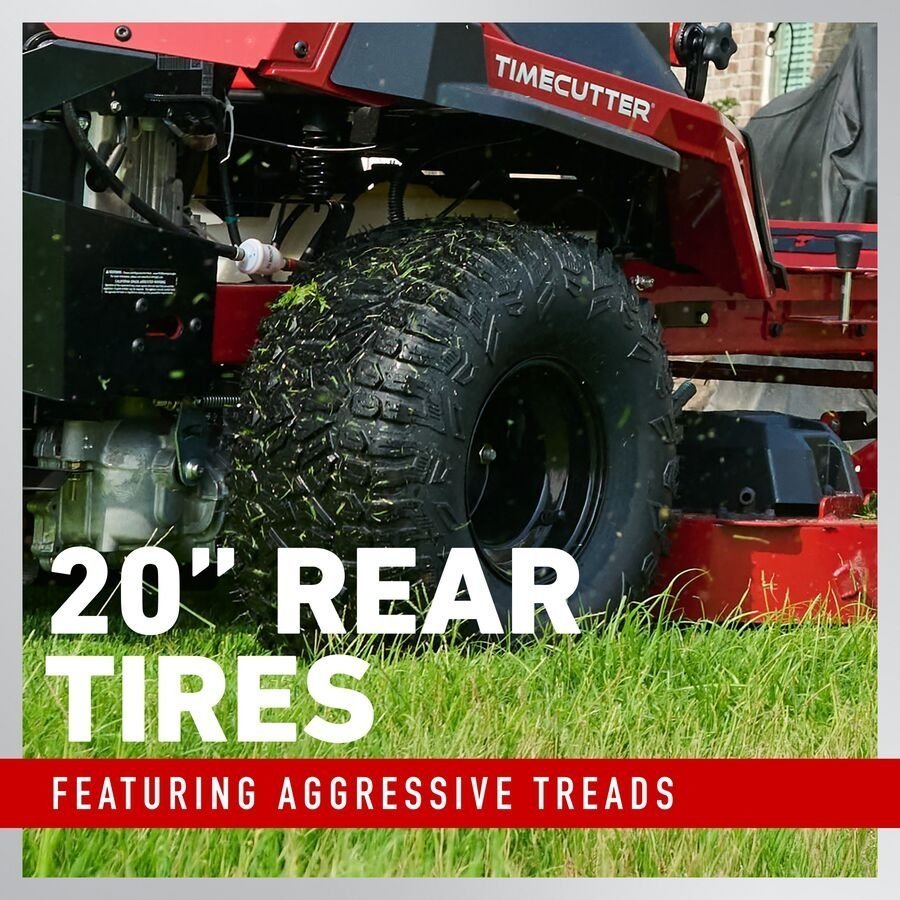

Drive Tires

20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)
Drive Type

Rear-Wheel Drive
Engine

23 hp Kawasaki FR691V 726cc
Engine Brand

Kawasaki
Engine Displacement (cc)

726 cc
Engine Horsepower

23.0 hp
Engine Power (kW)

17.2 kW
Foot Operated Height of Cut

Standard
Forward Ground/Transport Speed

Up to 7.0 mph / 11.2 kph
Forward Mowing Speed

Up to 7.0 mph / 11.2 kph
Frame

3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity

5 gal. / 18.9 L / 20 Qt.
Fuel Type

Gasoline
Greasable Bearings

Yes
Height of Cut

1.5 – 5.0 in. / 3.8 – 12.7 cm
Hitch Bracket

Standard
Hour Meter

Optional
Hydraulic Drive

Standard
Lighting

Optional
Number of Blades

3
Product Type

TimeCutter Max MyRide
Product Use

Residential
Recommended Oil Type

10W-30
Roll-Over Protection System (ROPS)

Optional
Seat

19″ Gaming Style
Spindle Bearings

Maintenance-free
Spindle Housing

Cast-Aluminum
Start Type

Electric
Steering Controls

Twin Lever
Steering Dampeners

Standard Dampers
Terrain Type

Flat with Obstacles
Tires

12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (55.8 cm x 27.9 cm) Rear
Tow Capacity

Combined machine, user, towed weight may not exceed 1,000 lbs.
Transmission

Dual Hydrostatic HG-EZT2200
Washout Port

Standard
Weight

684 lbs / 310.3 kg
