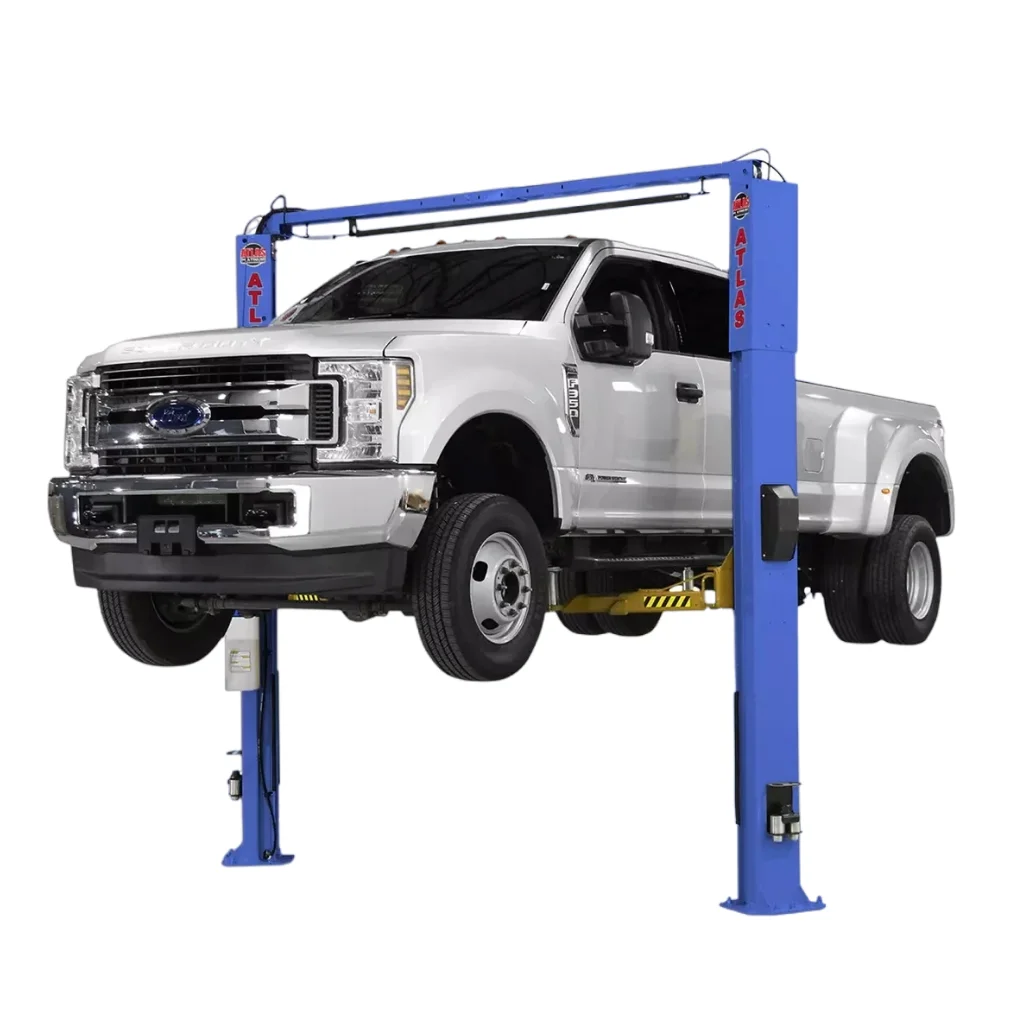

Atlas Platinum PVL10 10,000 lb Overhead Lift

This product also features an ALLY Hydraulic AL2850 Power Unit.This power unit also carries an industry leading two-year limited warranty.


ALI Certified Lift
10,000 lb. Capacity
Column design with special Double “S” bends increasing column strength
Can be installed Symmetrically OR Asymmetrically
Overall Height: 135 7/8″ (11′ 3 7/8″) or 139 7/8″ (11′ 7 7/8″) (Cylinder Height 12′ 4″)
Padded Carriages
3-Stage Front Arms & 2-Stage Rear Arms
Single-Point Lock Release
Powder Coat Finish
Includes Double Screw-up Adapters
Free 8 Piece Truck Adapter Set
Mounting Hardware Included
Standard with Premium ALLY Powerunit
Shipping Weight: 1,850 lbs.
5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

Atlas® Platinum PVL10 Specifications

Capacity
10,000 LB.

Overall Height
135 7/8″ (11’ 3 7/8”) or 139 7/8” (11’ 7 7/8”) – (CYLINDER EXTENDS TO 12’ 4”)

Overall Floor Width
139″ (11’ 7”) Asymmetric/137 1/2” (11’ 5 1/2”) Symmetric

Outside Column to Outside Column
130″ (10’ 10″) Asymmetric/129 1/4” (10’ 9 1/4″) Symmetric

Maximum Lift Height (Without Adapters)
72 1/2″

Maximum Lift Height (With Adapters)
81 1/2″

Minimum Arm Height
4″

Inside Column
107 3/4” (8’ 11 3/4”) Asymmetric/ 112 1/2″ (9’ 4 1/2″) Symmetric

Drive Thru
91” Asymmetric/99 1/2” Symmetric

Column Size
7″ x 10 1/4″

Column Thickness of Steel
6mm

Base Of Lift
15″ x 18″

Motor/Electrical Requirement
220 volt single (1) phase.

A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
1,850 LBS.

Adapter Heights
4 Each 3”, 6”

Arm Hole/Adapter Peg Size
2”

Requires a minimum of 4″ of concrete with a 3000 psi. rating
