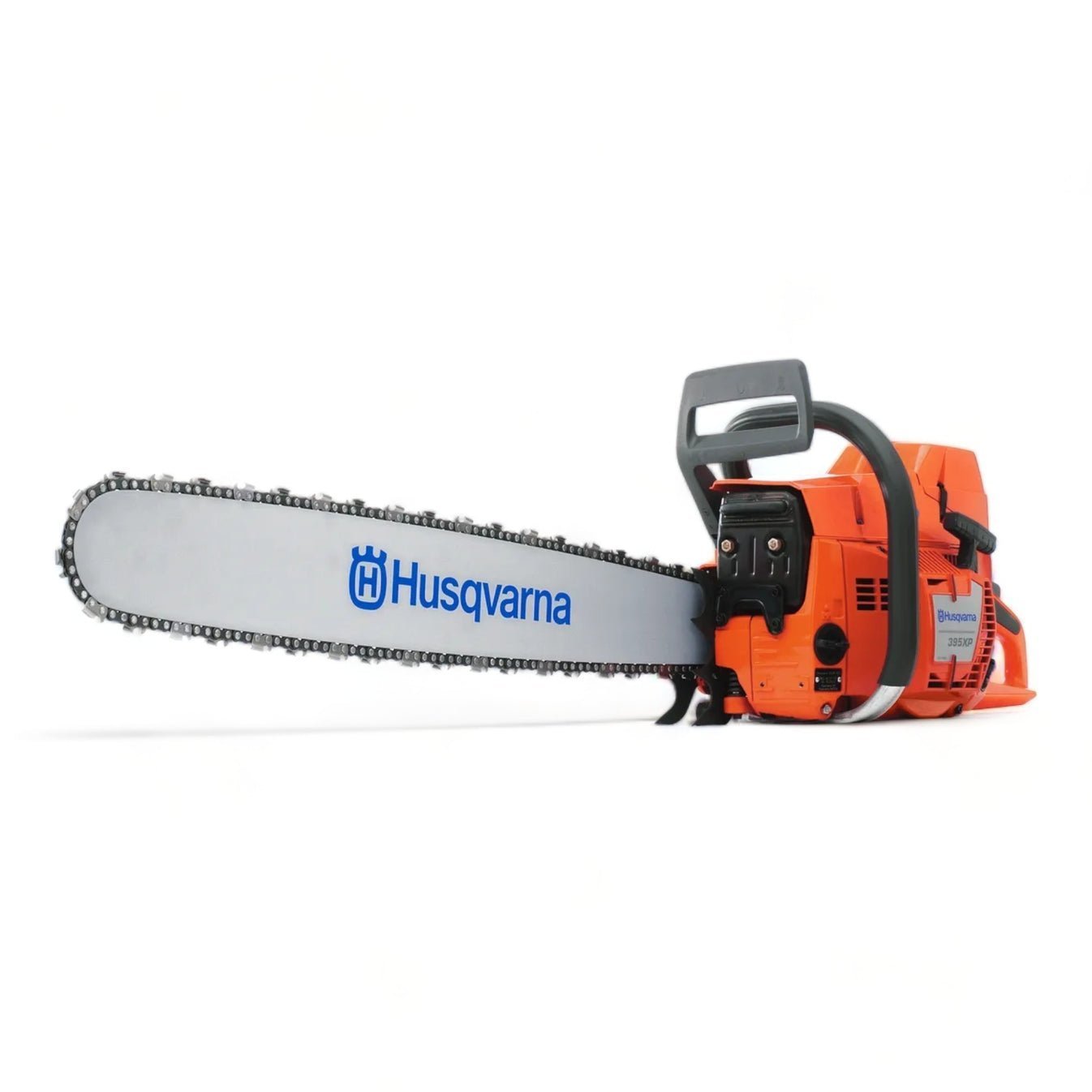

Husqvarna 395XP Gas Chainsaw

An advanced large-size XP®-saw, developed for the toughest forestry jobs. A perfect saw for hard wood logging with longer bars.This saw has classic Husqvarna XP® -features such as high power to weight ratio, along with a rugged, high-speed engine with an improved cylinder and anti-vibration carburettor. The XP® G model has heated handles.

Features
Air Injection™ Technology – Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life.

Adjustable Oil Pump – Customize and control oil flow to meet any need.

Quick-Release Air Filter – Easily remove and replace the filter after cleaning.

Magnesium crankcase – Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.

Quick release air filter cover – Quick release cover saves time when cleaning or changing spark plug.

Three-Piece Crankshaft – Forged three-piece crankshaft delivers maximum durability for even the toughest of jobs.

LowVib® Technology – Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably.

Smart Start® Technology – Specially-designed engine and starter for easy and fast starting with minimum effort.

Ergonomic grip – Angled front handle for better grip and natural working position.

Felling marks – Distinct, coloured felling marks for better felling precision.

Inertia-Activated Chain Brake – Reduces the likelihood of injury due to kickback.
Specifications
Engine

20″ RSN 3/8″ 1,5 mm C85

SKU: 965 90 27‑20

28″ RSN 3/8″ 1,5 mm C85

SKU: 965 90 27‑65
Power output

4.9 kW

4.9 kW
Cylinder displacement

94 cm³

94 cm³
Maximum power speed

9,600 rpm

8,700 rpm
Maximum recommended engine speed

12,500 rpm

12,500 rpm
Idling speed

2,500 rpm

2,500 rpm
Torque, max.

5.9 Nm

5.9 Nm
Torque, max. at rpm

6,000 rpm

6,000 rpm
Clutch engagement speed (±120)

3,400 rpm

3,500 rpm
Fuel consumption

470 g/kWh

470 g/kWh
Fuel consumption

2.4 kg/h

2.3 kg/h
Spark plug

Champion RCJ6Y

NGK BPMR7A, Champion RCJ6Y
Electrode gap

0.5 mm

0.5 mm
Ignition module air gap

0.3 mm

0.3 mm
Oil pump type

Automatic

Automatic
Oil pump capacity, max

20 ml/min

20 ml/min
Oil pump capacity, min

15 ml/min

15 ml/min
Equipment
Bar length (inch)

20 in

28 in
Recommended bar length, min

45 cm

45 cm
Recommended bar length, max

70 cm

70 cm
Chain type

H42

C85
Gauge

1.5 mm

1.5 mm
Pitch

3/8″

3/8″
Sprocket type

Rim 7

Rim 7
Dimensions
Weight (excl. cutting equipment)

7.9 kg

7.9 kg
Lubricant
Lubricant type (Engine)

Husqvarna 2 stroke or equiv. at 50:1

Husqvarna 2 stroke or equiv. at 50:1
Oil tank volume

1.06 US pint

1.1 US pint
Oil tank volume

0.5 l

0.5 l
Sound and Noise
Sound power level, guaranteed (LWA)

115 dB(A)

115 dB(A)
Sound power level, measured

114 dB(A)

114 dB(A)
Sound pressure level at operators ear

102 dB(A)

102 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle

6.5 m/s²

6.5 m/s²
Equivalent vibration level (ahv, eq) rear handle

10.2 m/s²

10.2 m/s²
