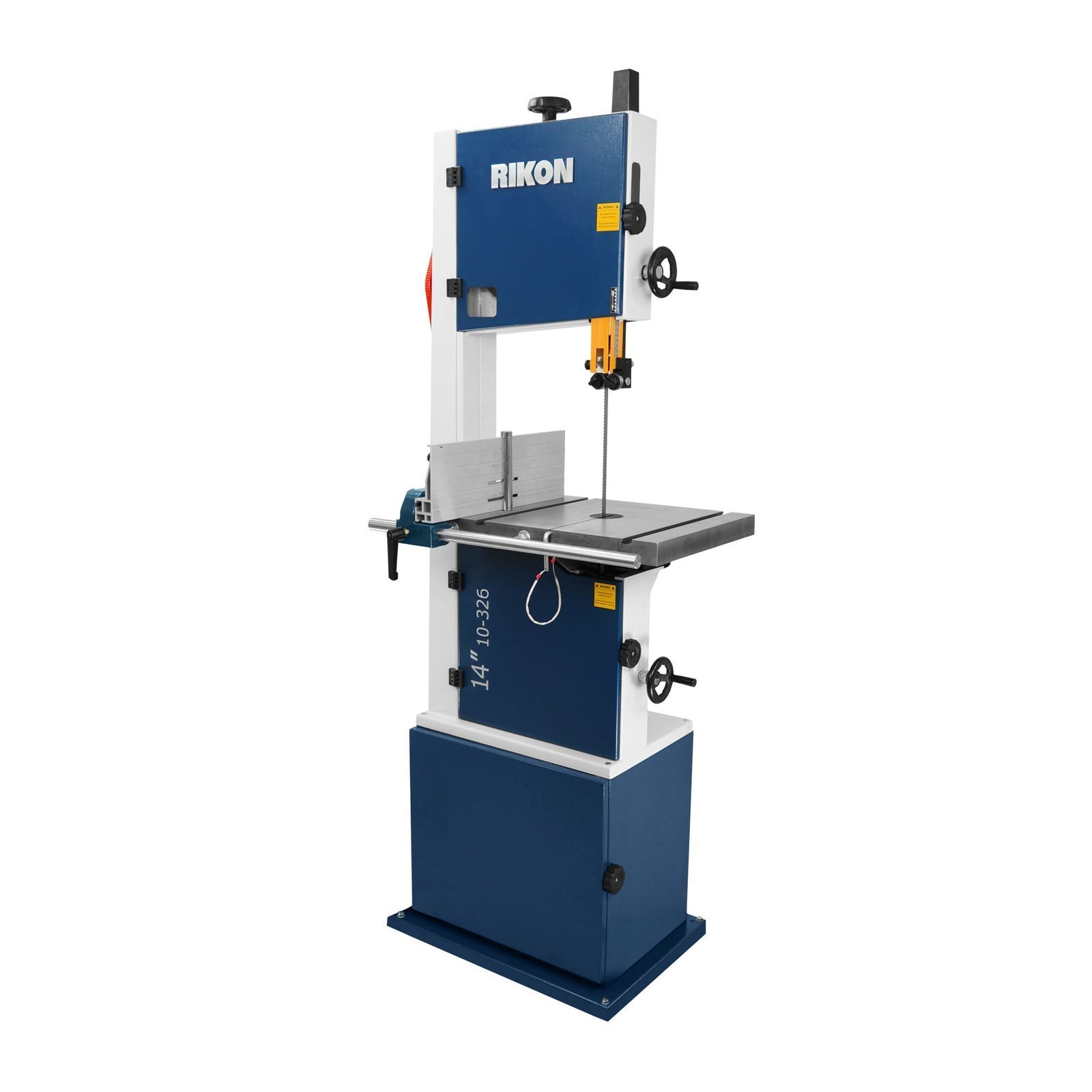

Model 10-326: 14″ Deluxe Bandsaw

13″ Cutting Capacity

• Patented – Spring Loaded Tool-less Guide System

• Patented – Quick Adjust Fence System With 6″ Tall Rip Fence

• Patented – Quick Lock Cast Iron Trunnion System

• 2 Speeds 1,445 / 2,950 FT / MIN.

• Large Cast Iron Table

• Balanced Cast Iron Wheels

14” Bandsaw #10-326 is RIKON’s newest model with many Patented features that professionals will enjoy – including spring-loaded tool-less blade quides, quick-adjust fence system and quick-lock trunnion table

[show_more more=”» Read More” less=”» Read Less” color=”#0f70e8″]angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base. Its dual voltage, 1-3/4HP motor provides ample power for most every work encountered. Designed with two speed options – just change the drive belt on the pulleys to change from fast to a slower blade speed. Includes 6” tall rip fence with re-saw bar. Wired for use with 3-wire 120V receptacles.

Tech Specs
Motor Horsepower

1-3/4 HP TEFC
Motor Amps

14/7
Motor Volts

115/230V, 60Hz, 1Ph
Blade Speed

1,445/2,950 FT/MIN
Cutting Capacity Height

13”
Cutting Capacity Width

13-5/8”
Blade Width

3/16” – 3/4”
Blade Length

111”
Table Size

21-1/2” x 15-3/4”
Table Left Tilt

-7°
Table Right Tilt

45°
Table Miter Gauge “T” Slot

(2) 3/4” x 3/8”
Table Height to Floor

40-1/2”
Table Height to Base

20-7/8”
Table Fence Size

18-3/4” x 1-3/4” x 6”
Wheel Material

Cast Iron
Blade Guide Type

Spring Loaded
Table Trunnion

Cast Iron
Overall Height

74-1/2”
Overall Width

33-3/4”
Overall Depth

25”
Overall Base Size

24” x 17-5/8”
Dust Port

1@4”
Overall Net Weight

285 lbs.
Warranty

5 Years
