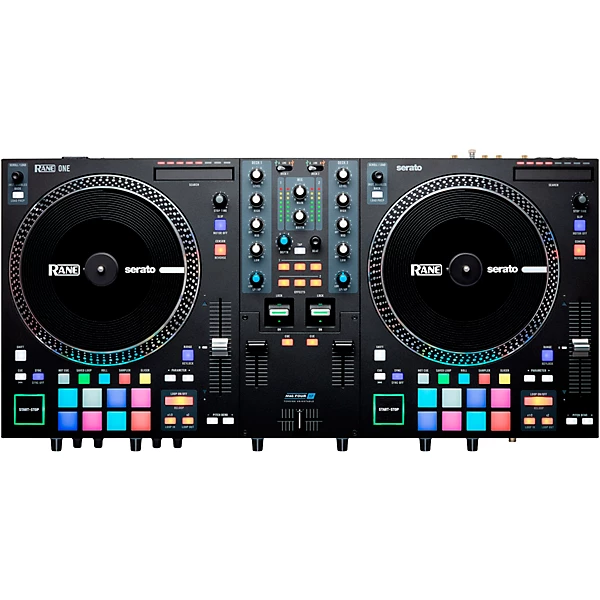

Rane ONE Professional Motorized DJ Controller

Description
The RANE ONE professional motorized DJ controller provides an intuitive solution for taking your sets to the next level. RANE’s trusted reputation for build quality and audio engineering is on full display with high-torque, 7.2″ motorized platters and multi-function performance pads granting tactile mastery over your music. Connect nearly any source with comprehensive I/O options, then shape your signature sound using the onboard filters, EQs and Serato DJ Pro software integration. When creativity calls, the RANE ONE answers.

Motorized Platters Provide Responsive Feel

At the heart of the RANE ONE are two high-torque, 7.2″ motorized platters with customizable torque settings for dialing in the perfect feel. Their sturdy acrylic surfaces stand up to intensive scratching and mixing, conveying authentic vinyl-like control with the convenience of a digital setup. Start and stop each platter with a classic plunger-style button for an old-school touch.

Multi-Function Pads Unlock Advanced Techniques

Sixteen multi-function performance pads provide one-touch access to advanced DJ techniques. Trigger saved loops, set hot cues, roll sections of tracks, activate samples, slice beats and access Scratch Bank. With six dedicated effects buttons, activate and tweak combinations of software effects on the fly for dramatic builds, drops and transitions using the aluminum paddle controls.

Connectivity for Any Gig

The RANE ONE offers comprehensive connectivity for any DJ setup. Each deck features two USB ports to connect laptops, switchable line and phono inputs for CDJs or turntables, and XLR and RCA main outputs. Dual XLR/TRS microphone inputs, an aux input and booth output provide additional flexibility. Control two music sources at once or seamlessly transition between them with the MAG FOUR crossfader for precision cuts.

Shape a Signature Sound

Put your mark on the music with 3-band EQs, dedicated loop controls and high/low-pass filters on each deck. The RANE ONE integrates Serato DJ Pro software for tight control over an extensive library of tracks. Save and recall precise EQ settings, loops and more using Serato’s advanced features.

Features
7.2″ motorized platters with quick release acrylic disks

Instant access software FX with two metal FX paddles

Ultralight MAG FOUR crossfader

High/Low-pass filter and 3-band EQ

Dedicated loop controls

Independent multi-mode performance pads including Serato

Scratch banks

Turntable style start/stop

XLR main and booth outputs

2 line/phono inputs

2 TRS/XLR microphone inputs

2 USB computer connections

Portable DJ controller

Weight: 24 lb.

Serato DJ Pro included
Specs
Digital Audio
Converters

Cirrus Logic, 24-bit PCM, 48kH

Digital Signal Processing

32-bit, Floating Pont, Double precision

Dynamic Range (A-weighted, unity gain)

ADC: 113dB

DAC: 113dB

CD Input to Analog Output: 110dB

CD Input to USB Output: 113dB

USB Input to Analog Output: 113dB
Inputs
Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS, Mic/Line switchable)

Analog Gain: 25dB

Maximum Input: 110mV

Gain Trim: Off to +26dB (unity at center)

Tone Control: 2-band

Aux Input (RCA stereo pair)

Maximum Input: 4Vrms

Dynamic Range (A-weighted): 114dB

Gain Trim: Off to +12dB

Tone Control: 2-band

CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)

CD: Line

Maximum Input: 4Vrms

Gain Trim: Off to +12dB

Tone Control: 3-band, full-cut to +10dB

THD+N (20kHz BW @ 1kHz): 0.004%

Phono: RIAA

RIAA Curve: +/-0.25dB

Gain (@ 1kHz): 31.5dB

Maximum Input (@ 1kHz): 106mV

Dynamic Range (A-weighted): 102dB
Outputs
Main Outputs (XLR)

Gain Trim: Off to 0dB

Maximum Output: 8Vrms

THD+N (20kHz BW @ 1kHz): 0.004%

Frequency Response: Flat

Booth Outputs (XLR)

Gain Trim: Off to 0dB

Maximum Output: 8Vrms

THD+N (20kHz BW @ 1kHz): 0.004%

Frequency Response: Flat

Master Outputs (RCA stereo pair)

Maximum Output: 4Vrms

THD+N (20kHz BW @ 1kHz): 0.004%

Frequency Response: Flat

Headphone Outputs (1/4”/6.35 mm & 1/8”/3.5 mm TRS)

Maximum Output Voltage: 4Vrms (no load): 50mW (50 ohms)

Output Power: 0.004%

Dynamic Range (A-weighted): 108dB
General
Pads

16 velocity-sensitive multi-color back-lit pads (8 per deck, 8 modes each)

Faders

1 MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls

2 Standard channel faders with shared Contour and Reverse controls

Connectors

2 XLR outputs (Main)

2 XLR outputs (Booth)

1 RCA stereo output pair (Master)

2 XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 1–2)

1 RCA stereo input pair (Aux)

1 1/4” (6.35 mm) TRS output (Headphones) (1) 1/8” (3.5 mm) TRS output (Headphones)

2 USB Type-B ports

1 IEC power cable input
Power
Connection: IEC

Voltage: 100–240V, 50/60Hz

Consumption: 50W
Dimensions (WxDxH)
26.5″ x 13.6″ x 4.9″/674 x 345 x 124.3 mm
Weight (including platters)
23.55 lb./10.68 kg
